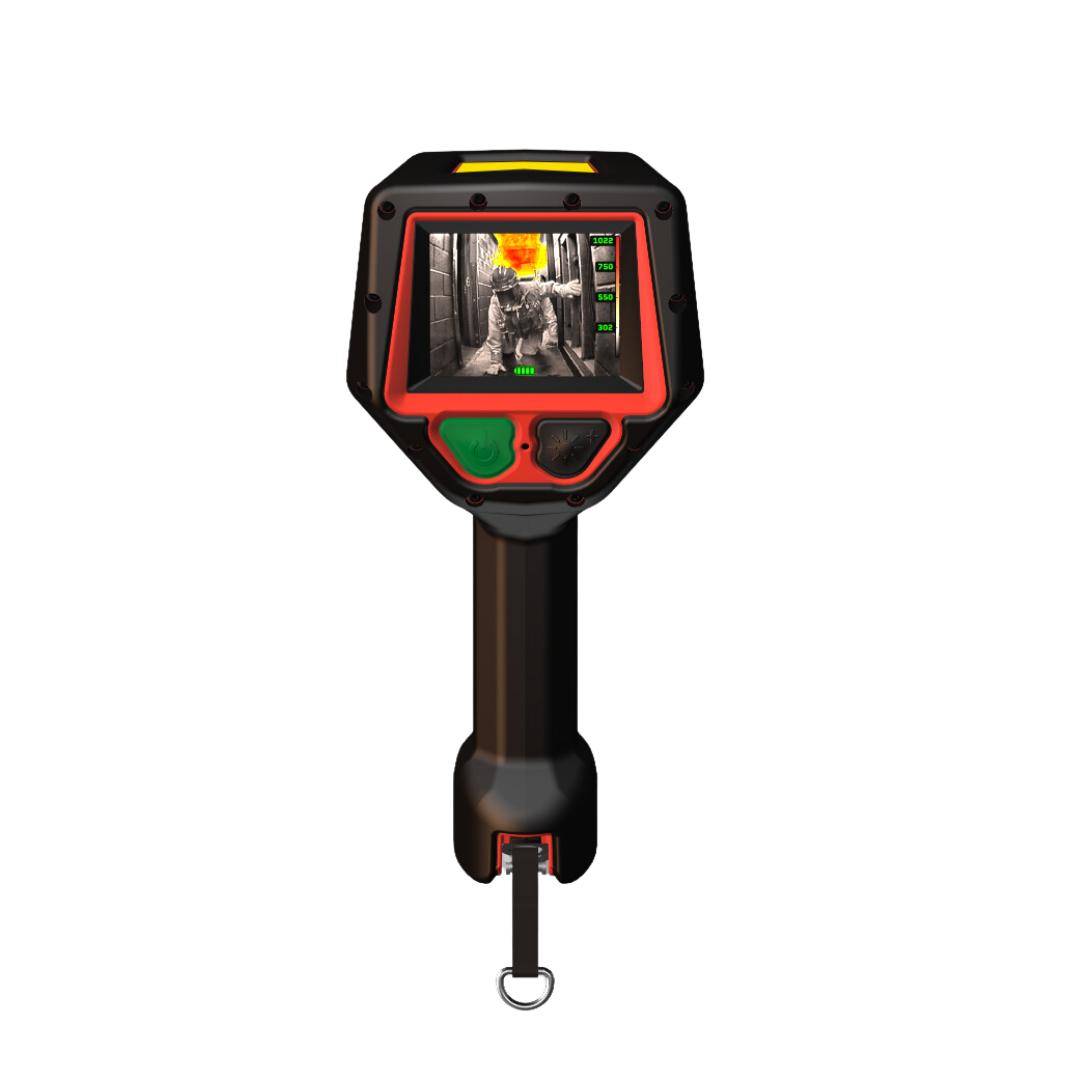

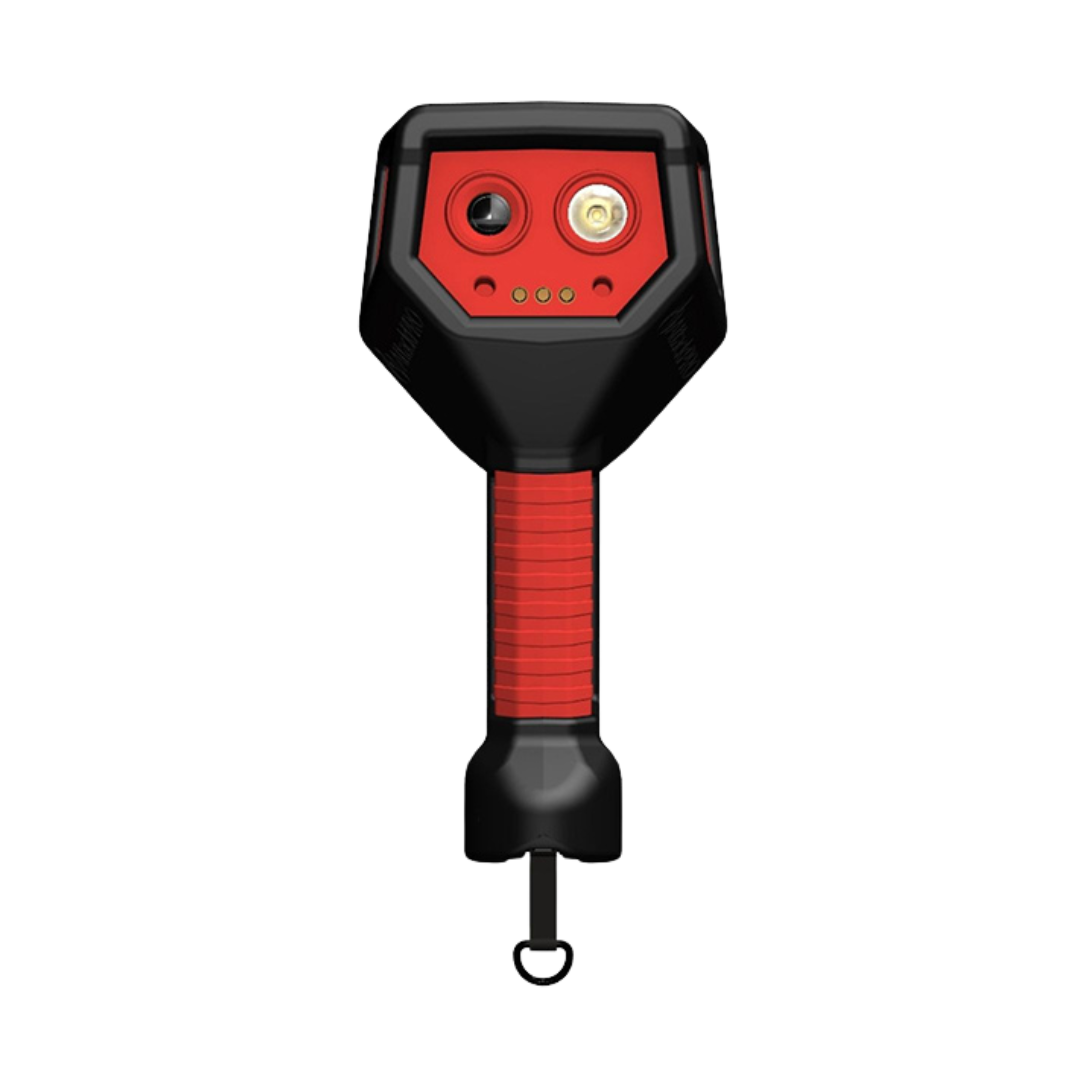

SEEK Attack Pro+ Thermal Imaging Camera, NFPA 1801:2021 Certified

Departments writing a TIC into a standards-driven spec usually start with the certification line and work backwards. The Attack Pro+ is SEEK's fireground handheld, listed by Delta as NFPA 1801:2021 certified, built around a 320 x 240 sensor and a two-button interface that works in a structural glove. Its operating envelope is published in tiers rather than a single number, which is how a PPE program manager can judge whether it survives the way the crew actually uses it.

Specifications

• Thermal sensor: 320 x 240 (76,800 pixels)
• Detection distance: 12 inches to 1,000 feet
• Field of view: 57 degrees HFOV, 42 degrees VFOV
• Temperature range: -4 to 1,022 F (-20 to 550 C)
• Operating temperature: -4 to 131 F (-20 to 55 C) no time limit; up to 302 F (150 C) max 15 min; up to 500 F (260 C) max 5 min
• Frame rate: greater than 25 Hz fast frame
• IP rating: IP67 waterproof
• Flashlight: 300 lumen LED
• Display: 3.5 in color with Corning Gorilla Glass
• Thermal sensitivity: less than 35 mK with SV1
• User interface: on-device 2 tactile button operation
• Temperature scale: Fahrenheit or Celsius
• Image modes: TIBASIC (default) and TIBASIC+
• Battery: more than 6 hours thermal imaging without flashlight; more than 3 hours with thermal and flashlight

SEEK is a separate manufacturer from FLIR - the two lines do not share batteries, chargers, or accessories. Contact Delta Fire & Safety for a quote.
